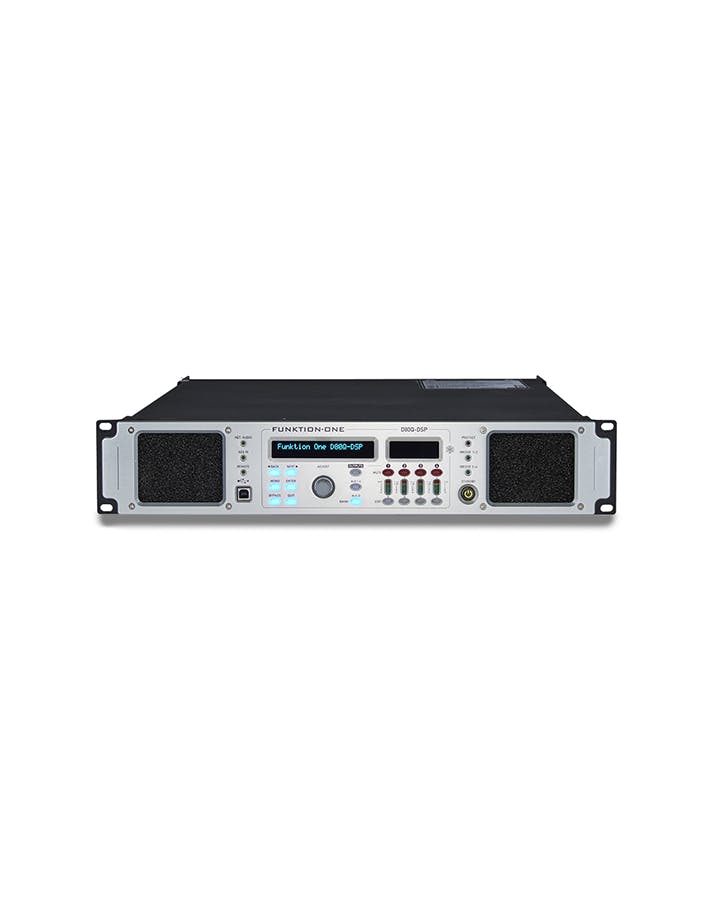

D-Series Amplifiers
Class D amplifiers with DSP and Dante options
OVERVIEW
The D-Series amplifier range includes eight Class D amplifiers, designed to Funktion-One’s specification and manufactured by MC2 to provide power and processing that perform to our exacting standards of audio fidelity.
D-Series models include four 4-channel amplifiers with optional built-in DSP and a high power 2-channel non-DSP amplifier. The 4-channel DSP versions include 8-channels of DSP (four auxiliary outputs). These auxiliary DSP outputs can be connected to other Dante receivers or analogue audio inputs.
Available with optional built-in DSP and Dante networking.
Processing:
ADC and DAC resolution: 24bit
Internal sample rate: 96kHz
System:
Nominal system gain: 32dB
Mains voltage: 115/230VAC nominal 50-60Hz(factory set for either 115 or 230V operation)
Mains current: 20A maximum
Suggested circuit breaker: C32
Mains connector: powerCON
Dimensions:
1U = 44mm x 482mm x 458mm
2U = 88mm x 482mm x 458mm
Weight:
D100Q-DSP: 12.5kg (27.6lbs), Boxed (shipping) 14.5kg (32.0lbs)
D80Q-DSP: 11.0kg (24.2lbs), Boxed (shipping) 13.0kg (28.7lbs)
D40Q-DSP: 10.0kg (22.0lbs), Boxed (shipping) 12.0kg (26.5lbs)
D20Q: 5.1kg (11.3lbs), Boxed 5.9kg (13.0lbs)
D120: 12.25kg (27.0lbs), Boxed 14.25kg (31.4lbs
PERFORMANCE FEATURES
- ADC / DAC Resolution24bit
- Internal Sample Rate96kHz
- Nominal System Gain32dB
- Power Range115V/230V AC nominal 50-60Hz (factory set)
- Mains Current20A maximum
- Suggested Circuit BreakerC32
- Mains ConnectorpowerCON
