Discontinued product
Overview
Original version of the DS210 with 1" HF and 2" voice coil MF drivers.

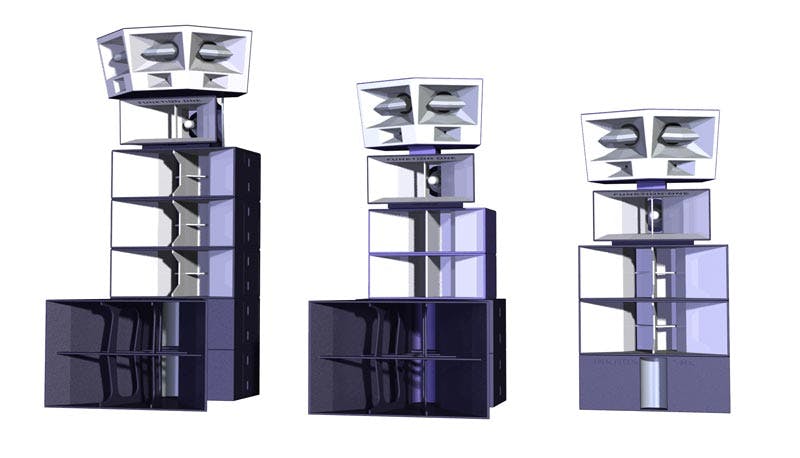

DS210 MKI loudspeaker enclosure comprises dual Axhead-loaded 10'' mid-high drivers and dual 1'' compression drivers (with Funktion-One's signature high HF crossover point for minimised distortion). Used in the original Dance Stack configurations with DS15, F218 MKI and Infrabass.
A 3-wide DS310 was made to special order.
PERFORMANCE FEATURES
Mid/high clarity, efficiency and resolution
- 1Forms the high-mid section of our Dance Stack® systems
- 2Funktion-One designed drivers
- 3Flying version available
- 4Constructed from 18mm birch plywood
- 5Pairs with DS15
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
2 x 10"
Operating Band
227Hz - 6kHz
Sensitivity at 1m
108dB at 2.8V
Power (AES)
400W
Nominal Impedence
8Ω
Driver
2 x 1"
Operating Band
5.5kHz - up
Sensitivity at 1m
109dB at 2.8V
Power (AES)
100W
Nominal Impedence
8Ω
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
200Hz - 18kHz
Weight
64kg (141lbs)
Nominal Dispersion
100° Horizontal x 25° Vertical
Connectors
2 x Neutrik NL4
