Discontinued product
Overview

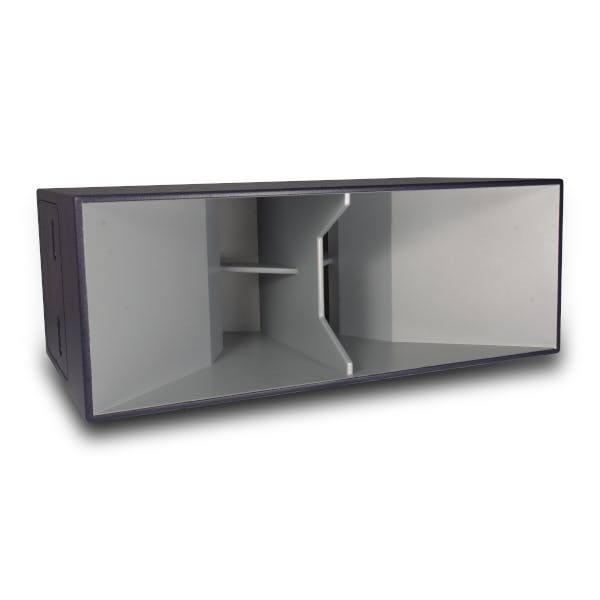

The original Funktion-One bass
A small number of very early cabinets have a different bolt pattern, and require modification to fit the current specification driver.
All other F218 mk1 cabinets accept the current specification driver and recone.
A variant with Neodymium drivers was also made. This driver is no longer available.
PERFORMANCE FEATURES
Classic Funktion-One bass sound
- 1Dual Funktion-One designed 18” drivers with 5” voice-coils
- 2Integral handles
- 3Construction 18mm birch ply
- 4Optional wheels
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
2 x 18"
Operating Band
40Hz - 280Hz
Sensitivity at 1m
102dB at 2V
Power (AES)
900W
Nominal Impedence
2 x 8Ω (4Ω parallel)
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
40Hz - 280Hz
Weight
91.5kg (201lbs)
Nominal Dispersion
N/A
Connectors
2 x Neutrik NL4
