Discontinued product

Overview

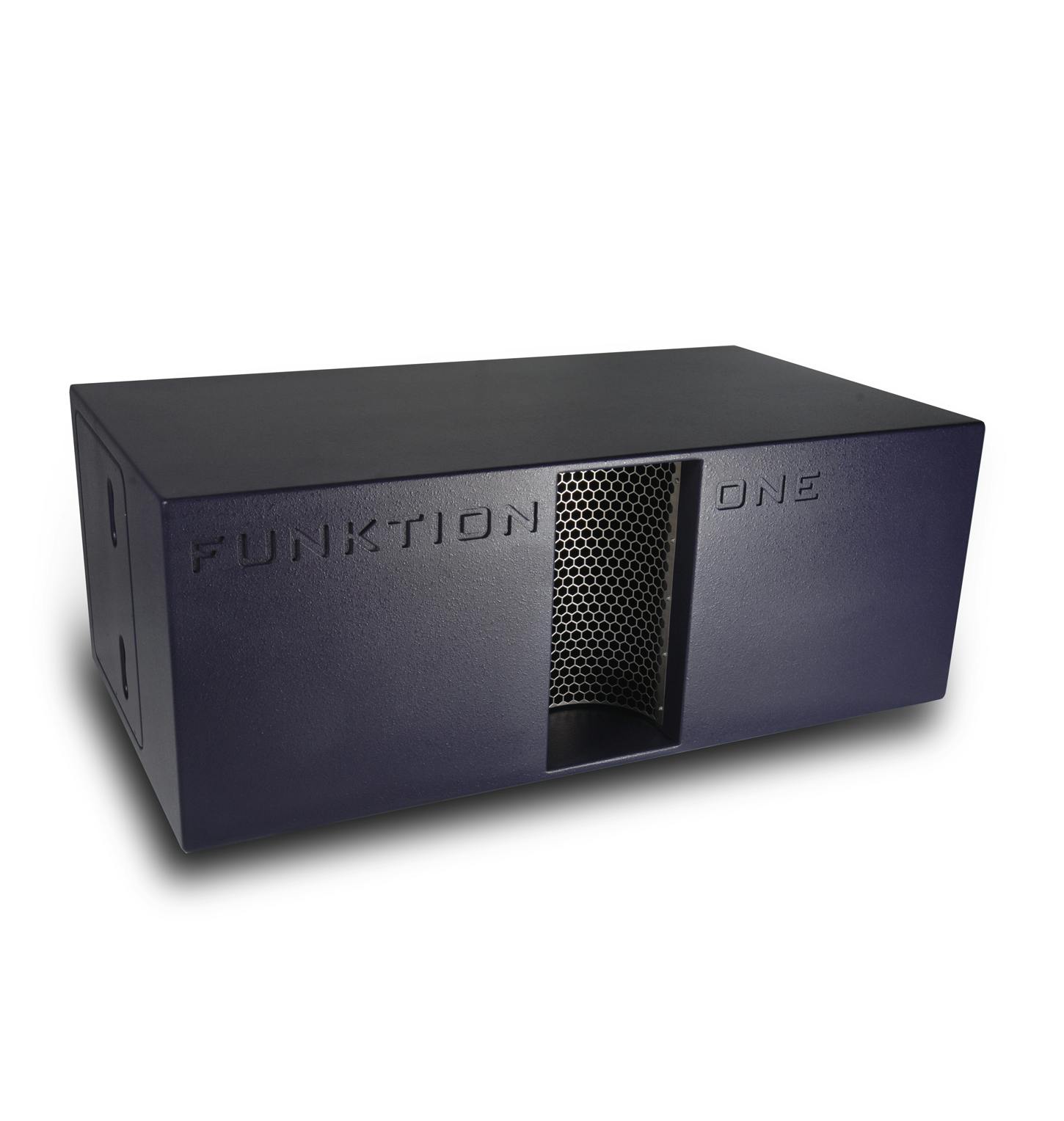

The patented Infrabass 218 is a bass loudspeaker enclosure covering the octave from 30Hz to 60Hz.  It delivers smooth, deep bass for a powerful sonic experience.

Optimal performance is achieved in combination with the Double Infrahorn. Typically used with Double Infrahorn, F218, DS15 and DS210 in Dance Stack configurations.

PERFORMANCE FEATURES

Smooth, deep bass for a powerful sonic experience

  • 1
    Dual Funktion-One designed 18” drivers with 5” voice-coils
  • 2
    Dimensionally identical to F218
  • 3
    Integral handles
  • 4
    Construction 18mm birch ply
  • 5
    Optional wheels

Technical Specification

Driver 2 x 18"
Operating Band 20Hz - 80Hz
Sensitivity at 1m 100dB at 2V
Power (AES) 2 x 600W
Nominal Impedence 2 x 8Ω
USABLE BANDWIDTH (-3DB) 25Hz - 80Hz
Weight 90kg (198lbs)
Nominal Dispersion N/A
Connectors 2 x Neutrik NL4
