Compact Low Profile Bass
Overview
Low Profile Compact Bass

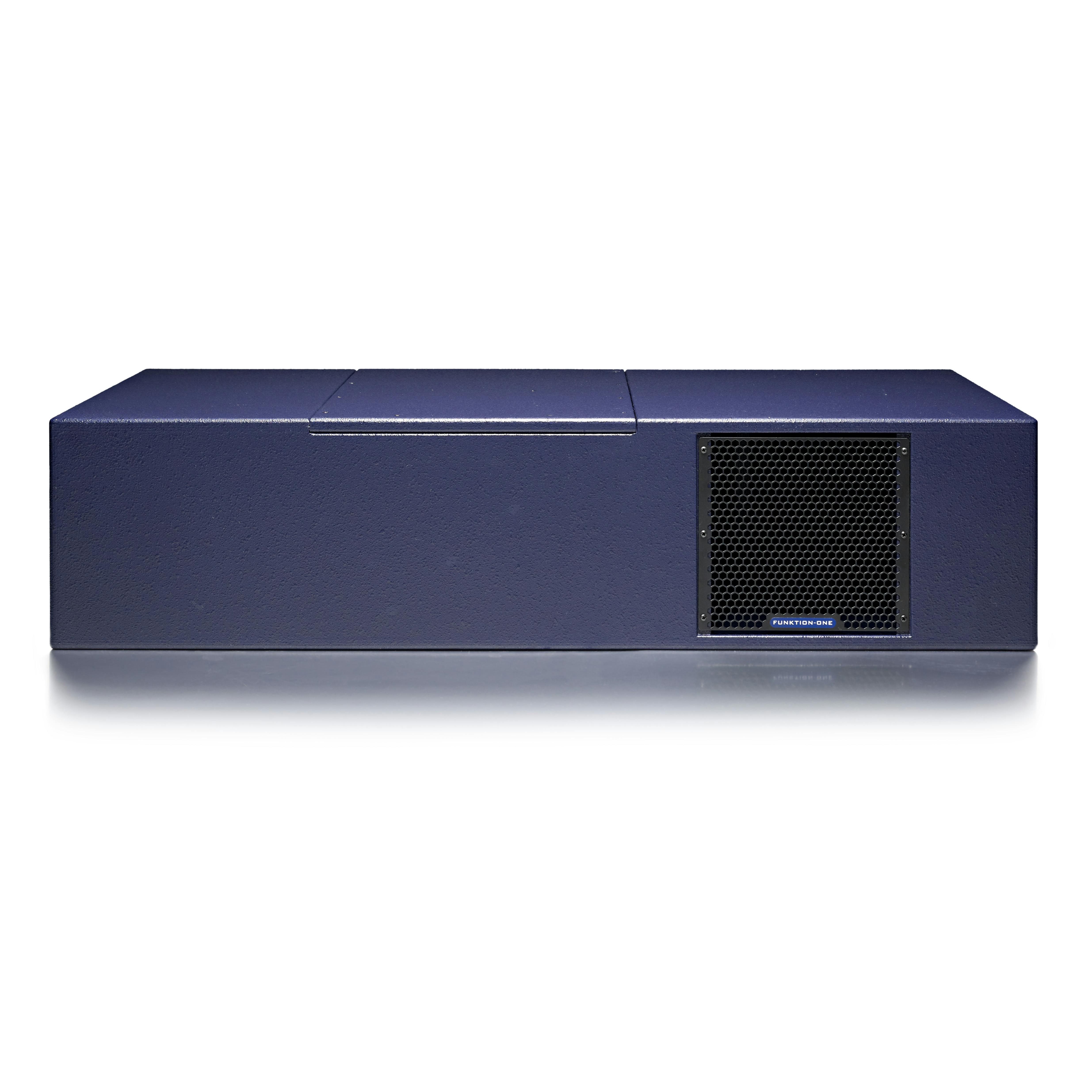

The MB210LP is one of Funktion-One’s lowest profile bass loudspeaker enclosures. It provides great bass extension to F55, F81 and F101 systems for applications including bars, restaurants and studios.
The MB210LP’s design was specifically developed to enable it to be fitted under seating and it is highly versatile as a result. It comprises dual 10" loudspeakers with Neodymium magnets handling 600 Watts and averaging 101dB sensitivity between 55Hz and 160Hz.
PERFORMANCE FEATURES
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
2 x 10"
Operating Band
55Hz - 160Hz
Sensitivity at 1m
101dB at 2V
Power (AES)
600W
Nominal Impedence
4Ω
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
55Hz - 160Hz
Weight
29kg (64lbs)
Nominal Dispersion
N/A
Connectors
2 x Speakon NL4
