PSM15 - Advanced Stage Monitoring for Live Applications

Overview

PSM15 is a high-performance, triaxial (bi-amped) 15” stage monitor engineered for superior clarity and control in demanding live environments.

It delivers a natural and detailed response, with excellent vocal intelligibility and low distortion at high SPL. The advanced waveguide design provides exceptionally consistent directivity, making the PSM15 inherently less prone to feedback. The 3-way, bi-amped approach enables optimised LF and HF design, resulting in a clearer, stronger vocal range and punchy low frequencies. In live monitoring environments, where vocal clarity, mix definition and feedback control are critical, this translates to a more accurate and stable on-stage reference. PSM15 is optimised for ease of handling, featuring M10 flying points for yoke mounting and M8 points for use with a stand adapter.

PERFORMANCE FEATURES

  • 1
    Naturally flat response without preset EQ
  • 2
    Triaxial (3-way) bi-amped design
  • 3
    Very high SPL
  • 4
    High clarity and vocal intelligibility
  • 5
    High impact bass
  • 6
    Excellent resistance to feedback
  • 7
    Low distortion, even at high SPL
  • 8
    Compact and discrete aesthetic
  • 9
    Optional stand top adapter (STA-2M8)

Technical Specification

Driver MHF
Operating Band 1kHz - up
Sensitivity at 1m 105dB at 2.8V
Power (AES) 100W
Nominal Impedence
Driver 15" (LF)
Operating Band 60Hz - 1kHz
Sensitivity at 1m 96dB at 2.8V
Power (AES) 600W
Nominal Impedence
USABLE BANDWIDTH (-3DB) 80Hz - 18kHz
Weight 28kg (62lbs)
Nominal Dispersion 50° Horizontal x 70° Vertical (rotatable by 90°)
Connectors 2 x NLT4M

Accessories

View All

YK-UPSM15

Universal Yoke bracket kit for PSM15

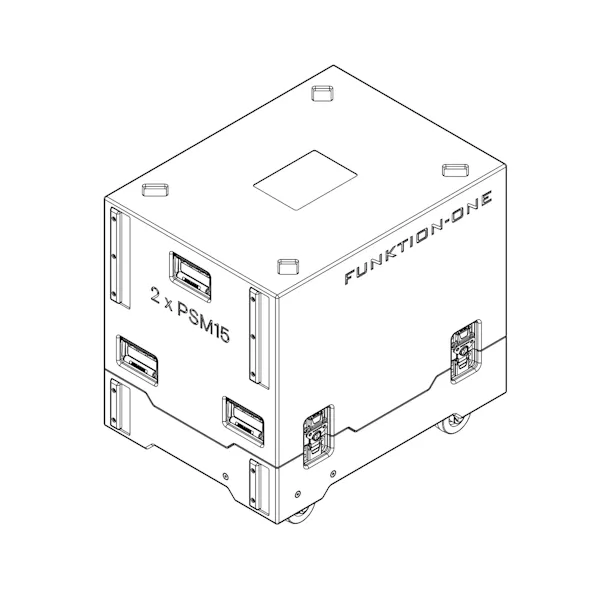

FC-2PSM15

Flight case for two PSM15

YK-SPSM15

Simple Yoke bracket kit for PSM15

STA-2M8

2 x M8 stand top adaptor for PSM15 on 35mm speaker pole
