Discontinued product
Overview

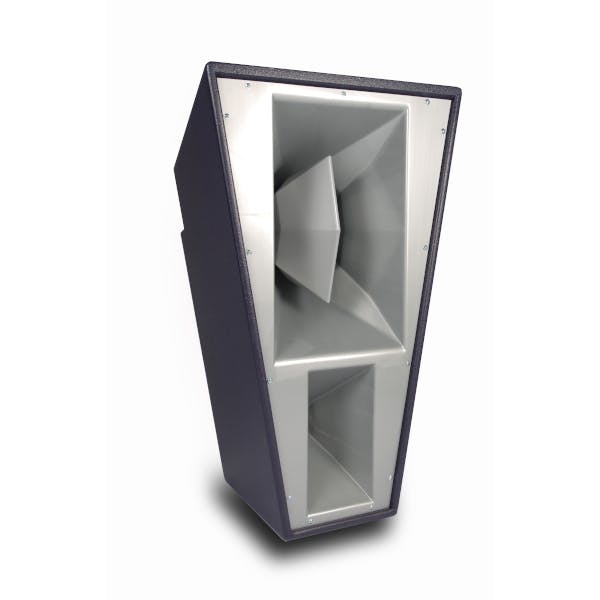

Downfill for Resolution touring systems
The Resolution touring system was a highly flexible point source array system, consisting of the Res 5T, Res 4T, Res 18 and Res 4D.
2-5 wide flying grids were available, as well as a range of ground stack boards.
Please note that R4/5 Neodymium drivers are no longer available. Recone kits and Ferrite (Ceramic) drivers are still available.
The Resolution touring point system is superseded by the Evo 7T touring point source system.
PERFORMANCE FEATURES
Powerful and efficient mid-high enclosure
- 1Unique shape for close arraying
- 2Large vertical coverage
- 3Two-way active
- 4Horn loaded for high efficiency
- 5Funktion One designed Neodymium drivers
- 6Built-in flying hardware
- 7Optional scrim for discrete appearance
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
8"
Operating Band
445Hz - 5.77kHz
Sensitivity at 1m
108dB at 4V
Power (AES)
200W
Nominal Impedence
16Ω
Driver
1"
Operating Band
5.55kHz - 18kHz
Sensitivity at 1m
109dB at 4V
Power (AES)
50W
Nominal Impedence
16Ω
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
445Hz - 18kHz
Weight
20kg (44lbs)
Nominal Dispersion
25° Horizontal x 50° Vertical
Connectors
EP6 panel and captive lead in cable recess
USABLE BANDWIDTH (-3DB)
Weight
Nominal Dispersion
Connectors
