Discontinued product

Overview

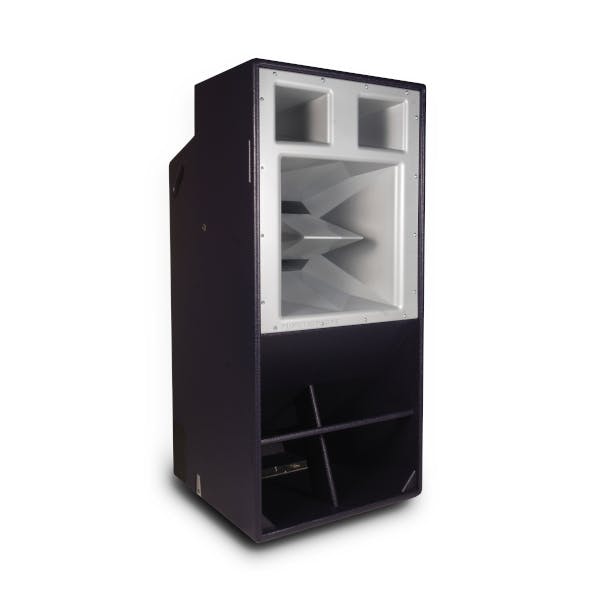

Narrow dispersion point source loudspeaker with flying hardware

The Resolution touring system was a highly flexible point source array system, consisting of the Res 5T, Res 4T, Res 18 and Res 4D.

2-5 wide flying grids were available, as well as a range of ground stack boards.

Please note that R4/5 Neodymium drivers are no longer available. Recone kits and Ferrite (Ceramic) drivers are still available.

The Resolution touring point system is superseded by the Evo 7T touring point source system.

PERFORMANCE FEATURES

High intensity three-way, mid-high loudspeaker

  • 1
    Fully horn loaded for high efficiency
  • 2
    Funktion One designed Neodymium drivers
  • 3
    Integrated inter-cabinet flying system
  • 4
    Captive link lead in recessed cable pocket
  • 5
    Identical size to Resolution 4 and 18
  • 6
    Supplied with protective wheelboard
  • 7
    Optional scrim for discreet appearance
  • 8
    Simplified “Enclosure” and “Skeletal” versions available

Technical Specification

Driver 12"
Operating Band 114Hz - 445Hz
Sensitivity at 1m 105dB at 2.8V
Power (AES) 300W
Nominal Impedence
Driver 8"
Operating Band 445Hz - 7.55kHz
Sensitivity at 1m 111dB at 4V
Power (AES) 200W
Nominal Impedence 16Ω
Driver 2 x 1"
Operating Band 5.77kHz - 18kHz
Sensitivity at 1m 113dB at 4V
Power (AES) 100W
Nominal Impedence 16Ω
USABLE BANDWIDTH (-3DB) 90Hz - 18kHz
Weight 46kg (101lbs)
Nominal Dispersion 25° Horizontal x 20° Vertical
Connectors EP6 panel and captive lead in cable recess
