Discontinued product

Overview

Superseded by the PSM18

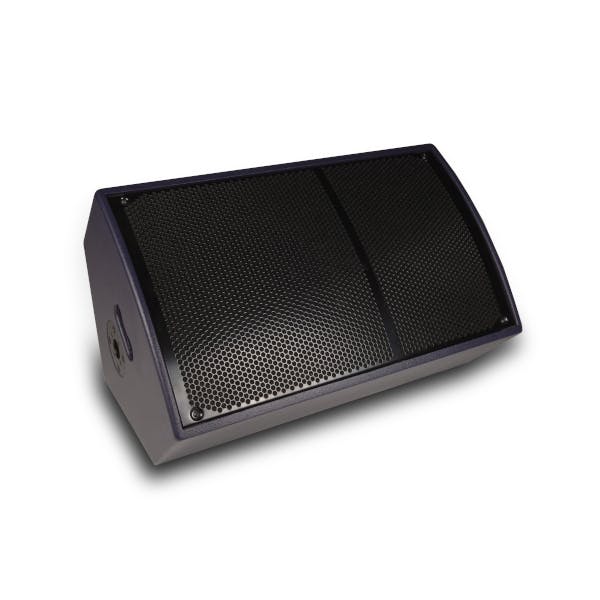

Mid and high frequencies are delivered with exceptional coherence from the 5" paper cone transducer originally designed for the innovative R1 loudspeaker. The Funktion One designed lightweight Neodymium 15” low frequency driver is incorporated into the enclosures with a special loading technique. This technology results in bass performance normally associated with horn loaded boxes whilst maintaining the size andweight of their ported counterparts.

This product is ideal for use as highly accurate and powerful DJ monitors with their low distortion significantly reducing ear fatigue compared with compression driver based alternatives. The horizontal dispersion of this monitor (in stage orientation) is relatively narrow and so on stage it is at its best with static performers.

The enclosure is provided with an integral 35mm pole mount, so that it can also be deployed as a main PA loudspeaker, and comes complete with a sturdy, foam backed, full metal grille. The RM15 is also available with an optional passive crossover.

PERFORMANCE FEATURES

Stage monitor

  • 1
    Integral 35mm "Top Hat" for pole mounting
  • 2
    Optional passive crossover network

Technical Specification

Driver 15"
Operating Band 30Hz - 721Hz
Sensitivity at 1m 102dB at 2.8V
Power (AES) 400W
Nominal Impedence
Driver 5"
Operating Band 721Hz - Up
Sensitivity at 1m 112dB at 3.5V
Power (AES) 75W
Nominal Impedence 12Ω
USABLE BANDWIDTH (-3DB) 50Hz - 15kHz
Weight 27kg (60lbs)
Nominal Dispersion 25° x 50°
Connectors 2 x Neutrik NL4
