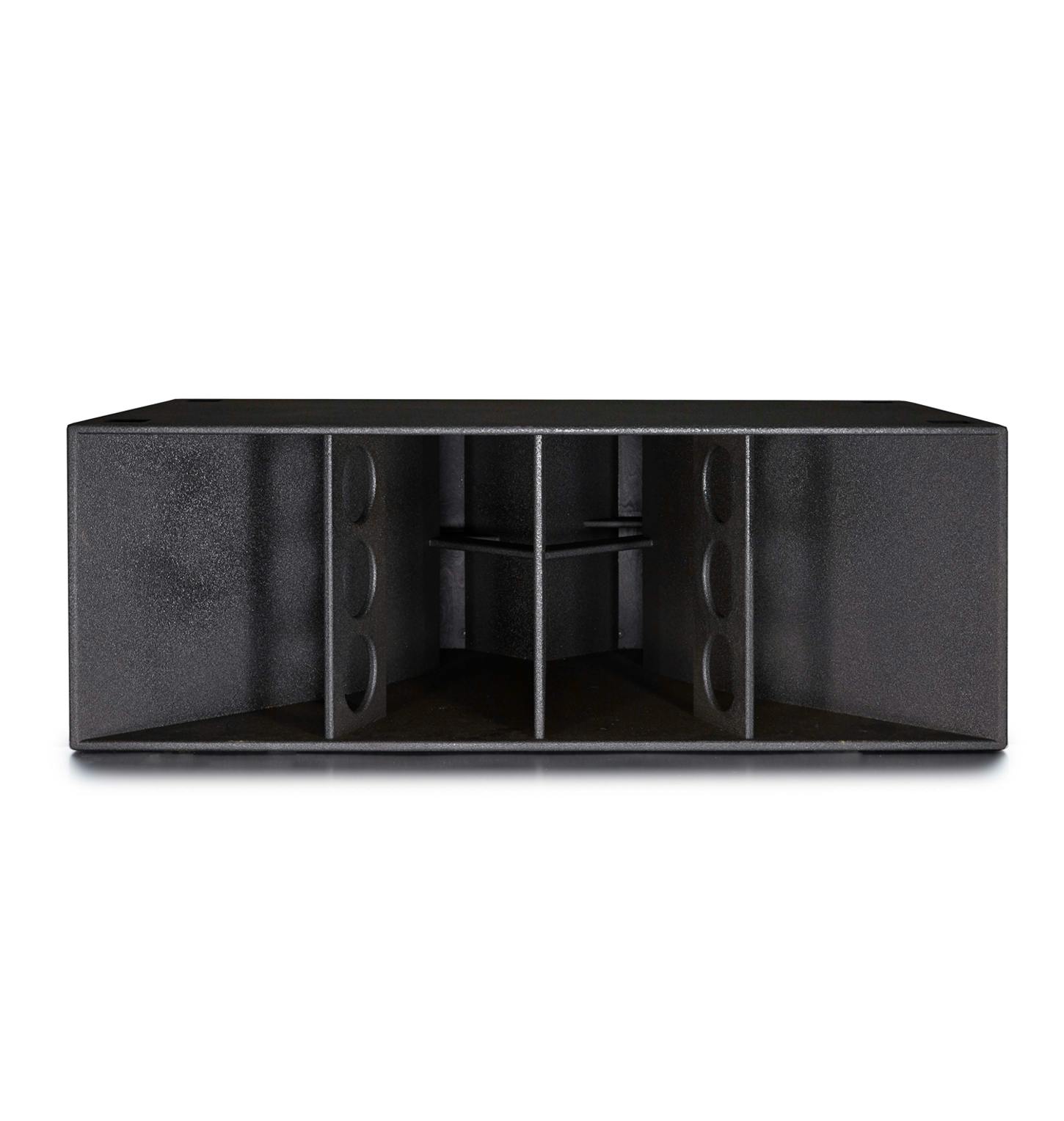

VX V221 - Exceptionally Efficient, High-Intensity Bass Enclosure

Overview
Full horn-loaded, highly efficient Funktion-One bass performance.
This double 21" bass speaker is the proven choice for large scale events, with exceptionally high sensitivity and electroacoustic energy efficiency. V221 provides bass power and dynamics for large areas, typically requiring far fewer cabinets and amplifiers than an equivalent direct radiating bass array, resulting in significant reductions in power consumption and CO2 emissions. Equally suited to large mono bass stacks and broadside arrays, both conventional and cardioid. V221 cardioid arrays have up to 30dB rear rejection in optimal configurations
PERFORMANCE FEATURES
Technical Specification
              Driver


              OPERATING BAND


              SENSITIVITY AT 1M


              POWER (AES)


              NOMINAL IMPEDANCE

Driver
                2 x 21"

 Operating Band
                20Hz - 85Hz

 Sensitivity at 1m
                104dB at 2V

 Power (AES)
                2 x 750W

 Nominal Impedence
                2 x 8Ω

              USABLE BANDWIDTH (-3DB)


              WEIGHT


              NOMINAL DISPERSION


              CONNECTORS

USABLE BANDWIDTH (-3DB)
                40Hz - 250Hz

 Weight
                130kg (288lbs)

 Nominal Dispersion
                Array dependent

 Connectors
                2 x Neutrik NL4
